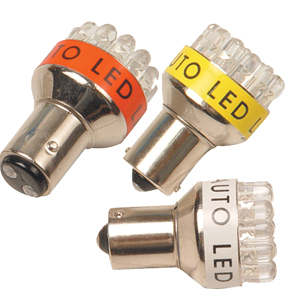

BA15 Dual & Single Contact LED Bulbs-T25 19LEDs |
|
|
※ 19 pcs of super bright LEDs as light resources
※ 1156(BA15S)-Single contact and single intensity
※ 1157(BAY15D)-Dual contact and dual intensity
※ All types available in white, red and amber color
※ 9~14.8VDC operation
※ 15mm bayonet base bulbs for tail / brake / turn light application |
|
Model |
Part No. |
LED Quantity |
Viewing Angle |
Voltage (VDC) |
Base Type |
|
TYP |
MAX |
|
1156 |
DHYCE121-19* |
19 LEDs |
20°/ 120° |
12 |
14.8 |
BA15S |
|
1157 |
DHYCE122-19* |
19 LEDs |
20°/ 120° |
12 |
14.8 |
BAY15D |
SPECIFICATION
|
Emitting Color |
Forward Voltage (V) |
Wavelength (nm) |
Viewing Angle (deg) |
Single LED Intensity (mcd) |
|
Red |
12 |
630 |
20 |
5000 |
|
Amber |
12 |
595 |
20 |
5000 |
|
Blue |
12 |
470 |
20 |
4500 |
|
Green |
12 |
525 |
20 |
12000 |
|
White |
12 |
X: 0.29 Y: 0.28 |
20 |
10000 |
|
NOTES CONCERNING TAIL/SIGNAL/BRAKE LED BULBS
|
|
LED brake/tail lamps may not work with some thermal flasher units due to their extremely low current draw. These installations will require an electronic flasher unit available at your auto parts store.
LED bulbs may cause some newer vehicles to indicate a bulb is burnt out (because of their low power consumption). Some cars indicate this by increasing the flash rate of the turn signals, some do not flash at all. This can be remedied with load resistors wired across the turn signal bulbs to simulate a filament bulb load. | |
|
|
|
|
|
