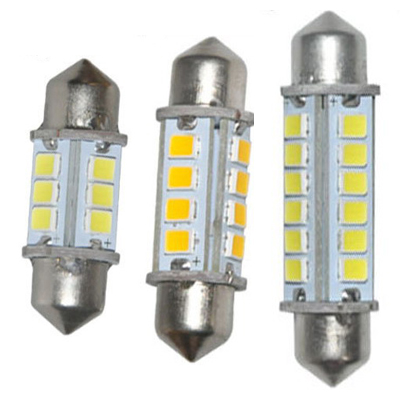

LED Festoon Bulbs |
|
|
※ 12, 16, 24 pcs of LED as light resources

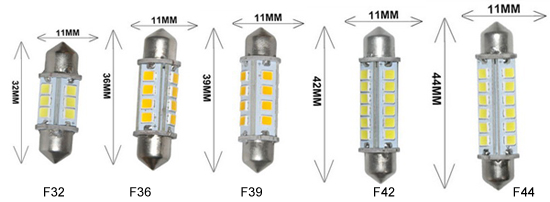

※ Size: 32 x 11mm, 36 x 11mm, 39 x 11mm, 42 x 11mm, 44 x 11mm available
※ Colors available: cool white, warm white
※ Beam angle: 360 degree
※ Operation voltage: DC12V / DC24V |
Important Note:
※ Polarized: If lamp does not burn, you must either swap power wires on your socket or on the lamp.
Technical Parameter
※ Product Dimension: 32 x 11mm, 36 x 11mm, 39 x 11mm, 42 x 11mm, 44 x 11mm
※ Working Voltage: DC12V /DC24V
|
Part No.
|
Emitting Color (CCT)
|
Wattage(W)
|
LED Qty
|
Luminous Flux (lm)
|
|
F32-12CS-CW
|
Cool White (6000K-7000K)
|
1.2
|
12
|
100
|
|
F32-12CS-WW
|
Warm White (2700K-3500K)
|
1.2
|
12
|
100
|
|
F36-16CS-CW
|
Cool White (6000K-7000K)
|
1.8
|
16
|
130
|
|
F36-16CS-WW
|
Warm White(2700-3500K)
|
1.8
|
16
|
130
|
|
F39-16CS-CW
|
Cool White (5000K-7000K)
|
1.8
|
16
|
130
|
|
F39-16CS-WW
|
Warm White (2700-3500K)
|
1.8
|
16
|
130
|
|
F42-24CS-CW
|
Cool White (6000K-7000K)
|
2.6
|
24
|
190
|
|
F42-24CS-WW
|
Warm White (2700K-3500K)
|
2.6
|
24
|
190
|
|
F44-24CS-CW
|
Cool White (6000-7000K)
|
2.6
|
24
|
190
|
|
F44-24CS-WW
|
Warm White (2700K-3500K)
|
2.6
|
24
|
190
|
|
|
|
|
|
|
