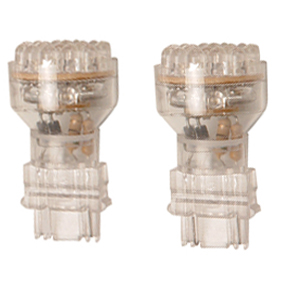

3156 & 3157 Wedge Base LED Bulbs (24LEDs) |
|
|
※ 24 pcs of super bright LEDs as light resources
※ 3156-Single contact and single intensity
※ 3157-Dual contact and dual intensity
※ All types available in white, red and amber color
※ 9~14.8VDC operation
※ 16mm wedge base bulbs for tail / brake / turn light application |
|
Model |
Item No. |
LED Quantity |
Viewing Angle |
Voltage (VDC) |
BaseType |
|
TYP |
MAX |
|
3156 |
DHYCF121-24* |
24 LEDs |
20°/ 120° |
12 |
14.8 |
Single Contact |
|
3157 |
DHYCF122-24* |
24 LEDs |
20°/ 120° |
12 |
14.8 |
Dual Contact |
The unique design of our 24 LED bulbs feature 18 LEDs aiming out the end plus 6 radially mounted LEDs aiming out the sides. This produces a more complete and even lens fill than conventional LED bulbs.
SPECIFICATION
|
Emitting Color |
Forward Voltage (V) |
Wavelength (nm) |
Viewing Angle (deg) |
Single LED Intensity (mcd) |
|
Red |
12 |
630 |
20 |
5000 |
|
Amber |
12 |
595 |
20 |
5000 |
|
Blue |
12 |
470 |
20 |
4500 |
|
Green |
12 |
525 |
20 |
12000 |
|
White |
12 |
X:0.29 Y:0.28 |
20 |
10000 | |
|
|
|
|
|
