Application
※ Direct replacement of traditional halogen R series bulb lamp
※ Ideal application for medical, landscape and architecture lighting
※ Widely used for restaurant, hotel, meeting room, showcase, showroom, cabinet and other place decoration etc.
Technical Parameter

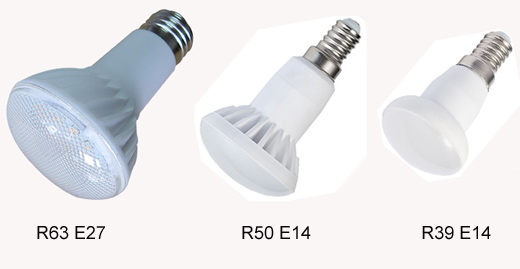

※ Product Dimension:
Ø63mm X 105mm (H) for 7W R63 E27 Bulb
Ø50mm X 87mm (H) for 5W R50 E14 Bulb
Ø39mm X 63mm (H) for 3W R39 E14 Bulb
※ Working Voltage: AC100-240V
|
Part No.
|
Emitting Color (CCT)
|
CRI(Ra)
|
Wattage(W)
|
LED Qty
|
Luminous Flux (lm)
|
|
R63-E27-7W-C-CW
|
Cool White (5000K-7000K)
|
≧80
|
7.0±10%
|
14*0.5
|
630
|
|
R63-E27-7W-C--NW
|
Neutral White (3500-5000K)
|
≧80
|
7.0±10%
|
14*0.5
|
630
|
|
R63-E27-7W-C-WW
|
Warm White (2700K-3500K)
|
≧80
|
7.0±10%
|
14*0.5
|
600
|
|
R50-E14-5W-C-CW
|
Cool White (5000K-7000K)
|
≧80
|
5.5±10%
|
30*0.2
|
450
|
|
R50-E14-5W-C-NW
|
Neutral White (3500-5000K)
|
≧80
|
5.5±10%
|
30*0.2
|
450
|
|
R50-E14-5W-C-WW
|
Warm White (2700K-3500K)
|
≧80
|
5.5±10%
|
30*0.2
|
420
|
|
R39-E14-3W-C-CW
|
Cool White (5000K-7000K)
|
≧80
|
3.5±10%
|
21*0.2
|
250
|
|
R39-E14-3W-C-NW
|
Neutral White (3500-5000K)
|
≧80
|
3.5±10%
|
21*0.2
|
250
|
|
R39-E14-3W-C-WW
|
Warm White (2700K-3500K)
|
≧80
|
3.5±10%
|
21*0.2
|
240
|
