Application
※ Direct replacement of traditional halogen R series bulb lamp
※ Ideal application for medical, landscape and architecture lighting
※ Widely used for restaurant, hotel, meeting room, showcase, showroom, cabinet and other place decoration etc.
Technical Parameter

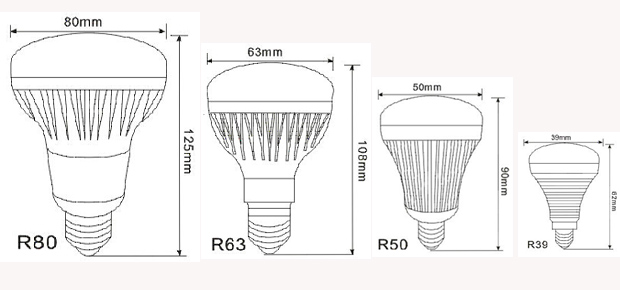

※ Product Dimension:
Ø80mm X 125mm (H) for 10W R80 E27 Bulb
Ø63mm X 108mm (H) for 7W R63 E27 Bulb
Ø50mm X 90mm (H) for 5W R50 E14 Bulb
Ø39mm X 62mm (H) for 3W R39 E14 Bulb
※ Working Voltage: AC100-240V
|
Part No.
|
Emitting Color (CCT)
|
CRI
|
Wattage(W)
|
LED Qty
|
Luminous Flux (lm)
|
|
R80-E27-10W-A-CW
|
Cool White (5000K-7000K)
|
≧80
|
10.0±10%
|
20
|
930
|
|
R80-E27-10W-A-NW
|
Neutral White (3500-5000K)
|
≧80
|
10.0±10%
|
20
|
930
|
|
R80-E27-10W-A-WW
|
Warm White (2700K-3500K)
|
≧80
|
10.0±10%
|
20
|
880
|
|
R63-E27-7W-A-CW
|
Cool White (5000K-7000K)
|
≧80
|
7.3±10%
|
14
|
650
|
|
R63-E27-7W-A-NW
|
Neutral White (3500-5000K)
|
≧80
|
7.3±10%
|
14
|
650
|
|
R63-E27-7W-A-WW
|
Warm White (2700K-3500K)
|
≧80
|
7.3±10%
|
14
|
600
|
|
R50-E14-5W-A-CW
|
Cool White (5000K-7000K)
|
≧80
|
5.3±10%
|
10
|
450
|
|
R50-E14-5W-A-NW
|
Neutral White (3500-5000K)
|
≧80
|
5.3±10%
|
10
|
450
|
|
R50-E14-5W-A-WW
|
Warm White (2700K-3500K)
|
≧80
|
5.3±10%
|
10
|
400
|
|
R39-E14-3W-A-CW
|
Cool White (5000K-7000K)
|
≧80
|
3.5±10%
|
6
|
260
|
|
R39-E14-3W-A-NW
|
Neutral White (3500-5000K)
|
≧80
|
3.5±10%
|
6
|
260
|
|
R39-E14-3W-A-WW
|
Warm White (2700K-3500K)
|
≧80
|
3.5±10%
|
6
|
240
|
