Application
※ Direct replacement of traditional halogen G4 bulb lamp.
※ Widely used for chandelier, ships, advertisement boards, showcase, cabinet and other interior lighting etc.
Technical Parameter

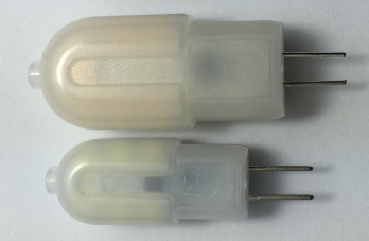

※ Product Dimension: Ø12mm X 37mm (L); Ø16mm X 44mm (L)
※ Working Voltage: AC/DC12V
|
Part No.
|
Emitting Color (CCT)
|
Wattage(W)
|
CRI(Ra)
|
Luminous Flux (lm)
|
|
G4-P03-1W5-CW
|
Cool White (5000K-7000K)
|
1.5±10%
|
80
|
140
|
|
G4-P03-1W5-NW
|
Neutral White (3500-5000K)
|
1.5±10%
|
80
|
140
|
|
G4-P03-1W5-WW
|
Warm White (2700K-3500K)
|
1.5±10%
|
80
|
120
|
|
G4-P03-2W-CW
|
Cool White (5000K-7000K)
|
2.0±10%
|
80
|
180
|
|
G4-P03-2W-NW
|
Neutral White (3500-5000K)
|
2.0±10%
|
80
|
180
|
|
G4-P03-2W-WW
|
Warm White (2700K-3500K)
|
2.0±10%
|
80
|
160
|
