Application

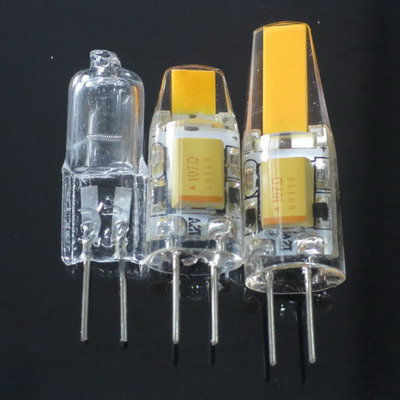

※ Direct replacement of traditional halogen G4 bulb lamp.
※ Widely used for chandelier, ships, advertisement boards, showcase, cabinet and other interior lighting etc.
Technical Parameter
※ Product Dimension: Ø10mm X 30mm for 1.5W version, Ø14mm X 43mm for 2W version
※ Working voltage: AC/DC12V
|
Part No.
|
Emitting Color (CCT)
|
Wattage
(W)
|
CRI (Ra)
|
LED Qty
|
Typical Luminous Flux (lm)
|
|
G4-TS1-2W-CW
|
CW (5000K-7000K)
|
1.8
|
80
|
1
|
160
|
|
G4-TS1-2W-NW
|
NW (4000K-5000K)
|
1.8
|
80
|
1
|
160
|
|
G4-TS1-2W-WW
|
WW (2700K-3500K)
|
1.8
|
80
|
1
|
140
|
|
G4-TS1-1W5-CW
|
CW (5000K-7000K)
|
1.5
|
80
|
1
|
120
|
|
G4-TS1-1W5-NW
|
NW (4000K-5000K)
|
1.5
|
80
|
1
|
120
|
|
G4-TS1-1W5-WW
|
WW(2700K-3500K)
|
1.5
|
80
|
1
|
100
|
