Application

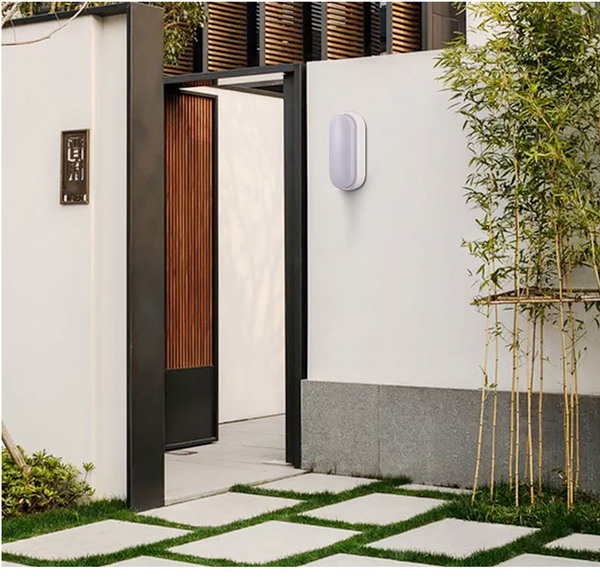

※ Suitable for Bulkhead on ship, Bathroom, Restaurant, Public aisle, Aisle corridor foyer wall lamp etc.
Technical Parameter
※ Product Dimension: 200mm (L) X 100mm (W) X 55mm(H) for 8W version,
230mm (L) X100mm (W) X 55mm(H) for 12W version
※ Working Voltage: DC12-24V or AC100-240V
|
Part No.
|
Emitting Colors
|
CRI
|
Luminous Flux（Lm）
|
Wattage（Watt）
|
|
BH-8W-WW
|
Warm White (2700-3500K)
|
≧80
|
600
|
8.0
|
|
BH-8W-NW
|
Neutral White (3500-5000K)
|
≧80
|
640
|
8.0
|
|
BH-8W-CW
|
Cool White (5000-7000K)
|
≧80
|
640
|
8.0
|
|
BH-12W-WW
|
Warm White (2700-3500K)
|
≧80
|
900
|
12.0
|
|
BH-12W-NW
|
Neutral White (3500-5000K)
|
≧80
|
960
|
12.0
|
|
BH-12W-CW
|
Cool White (5000-7000K)
|
≧80
|
960
|
12.0
|
